Extreme Networks 7520-48Y-8C 48-Port 25GbE Data Centre Switch with 8 × 100GbE Uplinks

Description

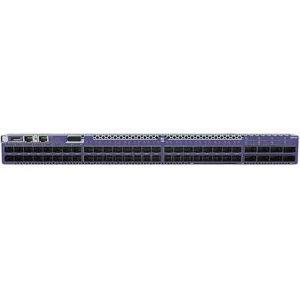

Extreme Networks 7520-48Y-8C Data Centre Switch

The Extreme Networks 7520-48Y-8C is a high-performance switch designed for data-centre networking, enterprise aggregation and high-speed network infrastructure. It provides 48 SFP28 ports supporting 1GbE, 10GbE and 25GbE connectivity, together with eight QSFP28 ports supporting 40GbE and 100GbE connections.

With a line-rate switching capacity of up to 4 Tbps and typical latency of approximately 800 nanoseconds, the 7520-48Y-8C is suited to environments that require high throughput, low latency and scalable fibre connectivity.

Key Features

• 48 × SFP28 ports: Supports 1GbE, 10GbE and 25GbE connections.
• 8 × QSFP28 ports: Supports 40GbE and 100GbE high-speed uplinks.
• 4 Tbps switching capacity: Designed for high-bandwidth network traffic.
• Low latency: Typical latency of approximately 800 ns.
• High forwarding performance: Up to 1,000 million packets per second (Mpps).
• Redundant power options: Supports up to two modular 800W AC or DC power supplies, depending on the selected configuration.
• Flexible airflow: Available with front-to-back or back-to-front airflow configurations.
• Dedicated management interfaces: Includes an out-of-band Gigabit Ethernet management port, RJ-45 console port and USB Type-A port.
• Rack-mountable design: Suitable for data-centre racks and enterprise network installations.

Applications

The Extreme Networks 7520-48Y-8C is suitable for data-centre leaf and aggregation deployments, enterprise network backbones, high-speed server connectivity and environments requiring multiple 25GbE connections with 100GbE uplinks.

Ordering Information

The base 7520-48Y-8C chassis is supplied without power supplies or fan modules. Configured versions include:

• 7520-48Y-8C-AC-F — dual AC power supplies with front-to-back airflow.
• 7520-48Y-8C-AC-R — dual AC power supplies with back-to-front airflow.

Confirm the required power configuration, airflow direction, transceivers and cables before ordering.

Contact Globikom for pricing, availability and enterprise networking solutions in Kenya and across Africa.
