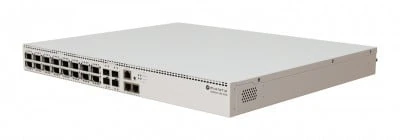

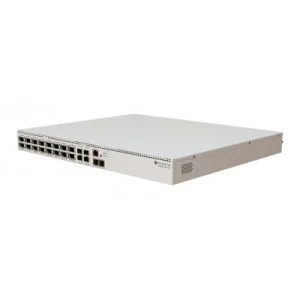

MikroTik CRS520-4XS-16XQ-RM 100G Cloud Switch

Description

The MikroTik CRS520-4XS-16XQ-RM is a high-performance 100G Cloud Router Switch designed for data centres, internet service providers (ISPs), enterprise networks and high-capacity network infrastructure. With 16 × 100 Gigabit QSFP28 ports, 4 × 25 Gigabit SFP28 ports and 2 × 10 Gigabit Ethernet ports, it provides extensive high-speed connectivity for demanding networking environments.

Available from Globikom, your networking and IT equipment supplier in Kenya, the MikroTik CRS520-4XS-16XQ-RM combines high-density switching, powerful processing and advanced RouterOS v7 capabilities in a rack-mountable platform.

HIGH-DENSITY 100G NETWORK CONNECTIVITY

The CRS520-4XS-16XQ-RM is built for networks that need substantial bandwidth and multiple high-speed connections. Its 16 QSFP28 ports support 100G connectivity, subject to compatible transceivers, cables and connected equipment. These interfaces can also support selected lower link speeds depending on the module used.

The four SFP28 ports support speeds up to 25G, providing additional options for connecting servers, aggregation switches and other compatible networking devices. Two Ethernet ports support speeds up to 10G and can be used for suitable network connections.

This combination makes the CRS520 a strong option for high-capacity switching, network aggregation and data centre connectivity.

POWERFUL QUAD-CORE PROCESSING

The switch features a quad-core AL52400 64-bit ARM processor running at 2 GHz, supported by 4 GB of DDR4 RAM and 128 MB of NAND storage. Its Marvell 98CX8410 switch chip supports high-performance switching operations.

This processing capability allows the CRS520 to do more than conventional Layer 2 switching. RouterOS v7 supports a range of network management and routing functions, including OSPF, BGP, access control lists and management VPNs. Supported Layer 3 hardware-offloaded routing features can help reduce processing demands for compatible traffic and configurations.

Actual performance depends on the network design, enabled features, traffic patterns, software configuration and compatible hardware.

ROUTEROS V7 AND NETWORK MANAGEMENT

The MikroTik CRS520-4XS-16XQ-RM runs RouterOS v7 with a Level 5 licence. Network administrators can use RouterOS tools to configure interfaces, manage traffic, implement routing policies, apply access controls and monitor network operation.

For ISPs and enterprise IT teams, this flexibility can help consolidate switching and selected routing functions within a single rack-mounted device. Administrators should verify the specific hardware-offloaded features and configuration requirements before deployment.

REDUNDANT POWER AND HOT-SWAP COOLING

The CRS520 includes two hot-swappable power supplies and four hot-swappable cooling fans. The dual power-supply arrangement supports power resilience when the device is connected to appropriately independent power sources and configured according to the site’s requirements.

The switch accepts 100–240V AC input and is designed for rack installation. Its operating temperature range is -20°C to +50°C under the manufacturer’s specified test conditions.

For installations where equipment availability is important, the replaceable power supplies and fans provide useful serviceability options. They do not, by themselves, guarantee uninterrupted operation; suitable power infrastructure and maintenance procedures remain important.

IDEAL APPLICATIONS

The MikroTik CRS520-4XS-16XQ-RM is suitable for:

• ISP core and aggregation networks
• Data centre switching and high-speed interconnects
• Enterprise network backbones
• High-capacity connections between compatible switches and servers
• Network infrastructure requiring multiple 100G interfaces
• Selected Layer 3 routing and hardware-offloaded network designs

KEY TECHNICAL SPECIFICATIONS

Product code: CRS520-4XS-16XQ-RM
Architecture: 64-bit ARM
CPU: Quad-core AL52400 at 2 GHz
RAM: 4 GB DDR4
Storage: 128 MB NAND
Switch chip: Marvell 98CX8410
100G interfaces: 16 × QSFP28
25G interfaces: 4 × SFP28
Ethernet interfaces: 2 × 10G Ethernet
Operating system: RouterOS v7
RouterOS licence: Level 5
Power inputs: 2 AC inputs
Cooling: 4 hot-swappable fans
Operating temperature: -20°C to +50°C
Dimensions: 443 × 367 × 44 mm

BUY MIKROTIK CRS520-4XS-16XQ-RM IN KENYA

Globikom supplies networking, connectivity and IT infrastructure equipment to businesses, service providers and technology partners in Kenya and across Africa. Contact Globikom to confirm current stock, delivery lead time, compatible optical modules and accessories, warranty arrangements and shipping options for your project.

Choose the MikroTik CRS520-4XS-16XQ-RM when your network requires high-density 100G switching, additional 25G connectivity and advanced RouterOS v7 management capabilities in a rack-mountable platform.
