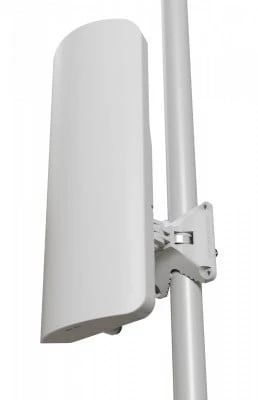

MikroTik mANTBox ax 15s – Wi-Fi 6 Outdoor Base Station, RouterOS L4

Description

The MikroTik mANTBox ax 15s is a dual-band Wi-Fi 6 outdoor base station designed for wireless internet service providers, campus networks and outdoor connectivity projects. It combines an integrated sector antenna, a modern wireless platform and MikroTik RouterOS in a single outdoor unit, helping network operators deploy wireless coverage without assembling a separate router and antenna system.

Available from Globikom for networking projects in Kenya and across Africa, the mANTBox ax 15s is suitable for point-to-multipoint wireless deployments serving compatible client devices. It can be used in locations such as business parks, camps, outdoor venues and rural wireless networks where carefully planned outdoor coverage is required.

DUAL-BAND WI-FI 6

The mANTBox ax 15s supports Wi-Fi 6 on both 2.4GHz and 5GHz. The 2.4GHz radio supports 802.11b/g/n/ax and has a theoretical maximum wireless rate of 574Mbps. The 5GHz radio supports 802.11a/n/ac/ax and has a theoretical maximum rate of 2400Mbps.

Actual throughput and coverage depend on the channel configuration, client equipment, interference, line of sight, regulatory limits and the number of active users. These advertised wireless rates are not guaranteed internet speeds.

INTEGRATED SECTOR ANTENNAS

The device has integrated dual-chain sector antennas with 12 dBi gain on 2.4GHz and 15 dBi gain on 5GHz. The integrated design helps simplify installation and reduces the need for separate external antennas.

This makes the mANTBox ax 15s a useful option for wireless operators planning sector coverage. For the best results, installers should consider antenna orientation, mounting height, terrain, obstructions and the intended coverage area before installation.

GIGABIT ETHERNET AND 2.5G SFP

The mANTBox ax 15s includes one Gigabit Ethernet port for network connectivity and passive PoE input. It also has one SFP port that supports compatible 2.5Gbps modules, allowing a suitable fibre uplink where the installation requires higher-capacity backhaul.

The appropriate uplink depends on the network design and available infrastructure. Confirm transceiver compatibility, fibre type and link distance before selecting an SFP module.

ROUTEROS MANAGEMENT

Powered by a dual-core 800MHz ARM processor with 256MB RAM and 128MB NAND storage, the mANTBox ax 15s runs RouterOS v7 with a Level 4 licence. It supports wireless access point operation and network configuration options appropriate to the deployment.

Network administrators can configure wireless interfaces, network addressing, bridging, routing and supported traffic-management features according to their requirements. For point-to-multipoint installations, ensure that the base station and client radios use compatible wireless protocols and settings.

OUTDOOR INSTALLATION

The mANTBox ax 15s has an IP55-rated enclosure and a specified operating temperature range of -40°C to +70°C. It is designed for outdoor installation, but correct mounting, grounding, cable protection and installation practices remain important for long-term reliability.

The device supports passive PoE input at 18–28V through Ethernet and DC-jack input at 12–28V. Maximum power consumption is specified at 21W, excluding the distinction between the device’s base consumption and connected attachments. Use a compatible power source and follow the manufacturer’s installation guidance.

KEY SPECIFICATIONS

Product: MikroTik mANTBox ax 15s
Wireless generation: Wi-Fi 6
2.4GHz wireless: 802.11b/g/n/ax, up to 574Mbps
5GHz wireless: 802.11a/n/ac/ax, up to 2400Mbps
Antenna gain: 12 dBi at 2.4GHz; 15 dBi at 5GHz
Ethernet: 1 × Gigabit Ethernet
Fibre interface: 1 × SFP, supporting compatible 2.5Gbps modules
Processor: Dual-core IPQ-5010, 800MHz
Memory: 256MB RAM
Storage: 128MB NAND
Operating system: RouterOS v7
RouterOS licence: Level 4
Enclosure rating: IP55
Operating temperature: -40°C to +70°C

APPLICATIONS

The mANTBox ax 15s is suitable for ISP wireless base stations, point-to-multipoint networks, outdoor business connectivity and planned wireless coverage at camps, parks and similar venues. Successful deployment depends on a suitable site survey, compatible client devices and compliance with local radio regulations.

BUY FROM GLOBIKOM

Globikom supplies networking, connectivity and IT infrastructure equipment for customers in Kenya and across Africa. Contact our team to confirm current stock, pricing, warranty, delivery lead time and compatibility with your wireless network.

For project quotations, share your intended coverage area, client equipment and backhaul requirements so the appropriate base station and accessories can be selected.
