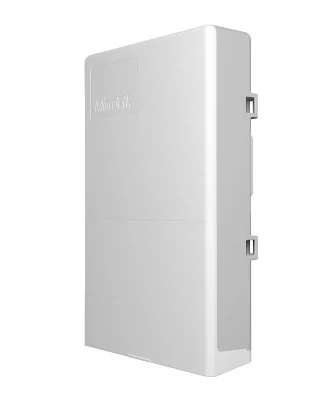

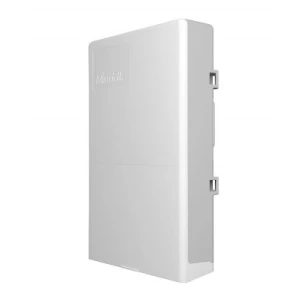

MikroTik netPower Lite 7R – Outdoor Gigabit Ethernet PoE Switch

Description

The MikroTik netPower Lite 7R is an outdoor Gigabit Ethernet switch designed for internet service providers (ISPs), wireless internet networks and building connectivity projects. Part of MikroTik’s GPEN concept, it offers multiple powering options, Gigabit Ethernet connectivity and two 10G SFP+ ports for fibre uplinks.

This switch is particularly useful for network operators connecting apartments, offices and other premises. Its seven reverse PoE ports can receive power from compatible connected devices, giving network installers greater flexibility when planning power distribution across a network.

Gigabit Ethernet and 10G Fibre Connectivity

The netPower Lite 7R features eight Gigabit Ethernet ports and two 10G SFP+ ports. The Ethernet ports support connections to compatible network equipment, while the SFP+ interfaces can be used for high-speed fibre uplinks with suitable transceivers and fibre infrastructure.

This combination makes the switch suitable for access networks that need Gigabit connections at the edge and higher-capacity fibre links towards the aggregation or core network.

Seven Reverse PoE Ports

Seven Ethernet ports support reverse PoE, allowing the switch to receive power from compatible equipment connected to those ports. This can help reduce dependence on a separate power source at the switch location, depending on the installation design.

The device also supports power input through a DC jack, a two-pin terminal or passive PoE input. Supported input voltage is 12–57V DC. Installers should ensure that the connected equipment, voltage and power budget are compatible.

Passive PoE Output

The eighth Ethernet port supports passive PoE output for powering a compatible device. The available output current depends on the input voltage. Check the power requirements of the connected equipment before use, as passive PoE is not universally compatible with all powered devices.

Outdoor-Ready Enclosure

The enclosure is rated IP54 and is designed for suitable outdoor network installations, including pole mounting. The included mounting accessories help with installation. The device has passive cooling, so it operates without a cooling fan.

SwitchOS Lite Management

The netPower Lite 7R runs SwitchOS Lite, providing a web-based interface for configuring supported switching features. It is designed primarily for Layer 2 switching applications rather than acting as a RouterOS-based routing gateway.

Key Technical Specifications

• Product name: MikroTik netPower Lite 7R
• Product code: CSS610-1Gi-7R-2S+OUT
• Ethernet ports: 8 × Gigabit Ethernet
• Reverse PoE inputs: 7 ports
• PoE output: 1 port, passive PoE
• Fibre interfaces: 2 × 10G SFP+
• Operating system: SwitchOS Lite
• Power input: 12–57V DC through supported input options
• Maximum power consumption: 29W with connected devices
• Enclosure rating: IP54
• Cooling: Passive
• Dimensions: Approximately 304 × 212 × 71mm

Power Supply and Installation

Important: A power supply is not included with this product according to MikroTik’s product specifications and must be purchased separately if required. The package includes mounting accessories. Confirm your required power source and compatible SFP+ modules before ordering.

The netPower Lite 7R is suitable for ISP access networks, apartment connectivity, outdoor Ethernet distribution and fibre-connected network deployments. Its reverse PoE functionality can simplify some installations, but the final power arrangement should be planned carefully.
