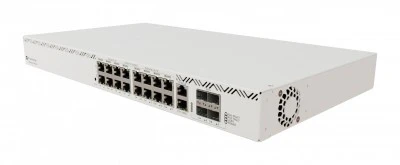

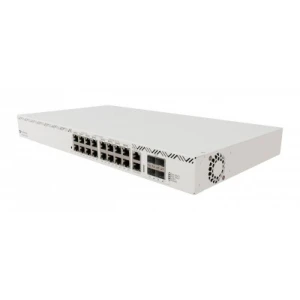

MikroTik CRS320-8P-8B-4S+RM – 16-Port PoE Switch with 4x SFP+ and 1150W PoE Budget

Description

The MikroTik CRS320 PoE switch is a high-power managed Gigabit Ethernet switching solution for internet service providers, enterprise networks, CCTV installations and wireless deployments. It features 16 PoE-capable Gigabit Ethernet ports and four 10G SFP+ uplinks, making it suitable for networks that require high-power device connectivity and high-speed fibre connections.

The MikroTik CRS320-8P-8B-4S+RM is a high-power managed Gigabit Ethernet switch designed for enterprise networks, internet service providers, CCTV installations, wireless deployments and businesses that need to power multiple network devices over Ethernet. It combines 16 PoE-capable Gigabit Ethernet ports, four 10G SFP+ uplink ports and advanced switching features in a rack-mountable design.

Available from Globikom for networking projects in Kenya and across Africa, this MikroTik switch is suitable for installations that need a combination of reliable wired connectivity, high-power PoE output and high-speed fibre uplinks.

HIGH-POWER POE AND POE++

The CRS320-8P-8B-4S+RM has 16 Gigabit Ethernet ports with PoE output. Ethernet ports 1–8 support IEEE 802.3af/at PoE, while ports 9–16 support IEEE 802.3af/at/bt PoE++, including compatible higher-power devices.

PoE allows supported access points, cameras and other network equipment to receive power and data over a single Ethernet cable. This can reduce the need for individual power adapters and simplify cable management in offices, hotels, campuses, commercial buildings and surveillance installations.

The PoE++ ports can supply up to 90W per port under supported conditions. Always check the power requirements and IEEE PoE compatibility of the connected device before installation.

UP TO 1150W POWER CAPACITY

The switch is supplied with a hot-swappable power supply. Its available power capacity can be increased by installing a compatible second power supply in the expansion slot, raising the maximum stated power consumption capacity to 1150W.

Actual PoE power available to connected equipment depends on the installed power supplies, the switch’s own consumption and the total load. Plan the power budget carefully, particularly when connecting multiple high-power wireless access points, cameras or other PoE++ devices.

FOUR 10G SFP+ FIBRE UPLINKS

Four 10G SFP+ ports provide high-speed uplink connectivity to core switches, routers, fibre infrastructure and aggregation equipment. Depending on the transceiver or cable used, the ports support compatible 1G, 2.5G and 10G connections.

These uplinks help integrate the switch into enterprise networks, fibre distribution systems and ISP infrastructure where traffic from multiple connected devices needs to reach the core network efficiently. Select transceivers and direct-attach cables according to the distance, fibre type, speed and compatibility requirements of your installation.

MANAGED SWITCHING WITH ROUTEROS

Powered by a dual-core 800MHz processor, 256MB RAM and the Marvell 98DX226S switch chip, the CRS320-8P-8B-4S+RM supports advanced network management through RouterOS v7. It is a Layer 2 switch with supported hardware-offloaded Layer 3 routing features.

Depending on the network design and configuration, supported capabilities can include VLANs, traffic management, monitoring and network segmentation. Hardware-offloaded features and performance depend on the selected configuration, so confirm the requirements of complex routing or filtering deployments before purchase.

RACK-MOUNTABLE DESIGN

The CRS320-8P-8B-4S+RM is designed for indoor installation in a suitable rack or network cabinet. Its rack-mount format is appropriate for server rooms, telecom facilities, enterprise network cabinets and structured cabling installations. The device includes rack-mounting accessories and cable-management brackets.

The switch uses active cooling with fans. Install it in a dry, ventilated environment and allow sufficient space for airflow and maintenance.

KEY SPECIFICATIONS

Product model: CRS320-8P-8B-4S+RM
Ethernet ports: 17 Gigabit Ethernet ports in total, including 16 PoE-capable ports and one additional management port
PoE ports 1–8: IEEE 802.3af/at
PoE ports 9–16: IEEE 802.3af/at/bt
Maximum stated PoE++ output per compatible port: Up to 90W
SFP+ ports: 4 × 10G SFP+
Processor: Dual-core 800MHz
Switch chip: Marvell 98DX226S
Memory: 256MB RAM
Storage: 32MB flash
Operating system: RouterOS v7, with SwOS dual-boot capability
RouterOS licence: Level 5
Power input: 100–240V AC
Power capacity: Supplied power supply, expandable with a compatible second PSU
Maximum stated power consumption with additional PSU: 1150W
Operating temperature: Check the current official product documentation for the applicable range and revision
Installation: Indoor rack-mount or suitable desktop placement

WHO SHOULD CONSIDER THIS SWITCH?

The CRS320-8P-8B-4S+RM is worth considering for internet service providers, enterprise IT teams, CCTV integrators, wireless network installers, hotels, campuses and businesses deploying multiple PoE-powered devices alongside 10G fibre uplinks.

Before ordering, verify the required PoE standard, the total power budget, the number and type of uplinks, and compatibility with the equipment you intend to connect.
