NVIDIA SN5600D Spectrum-4 64-Port 400GbE Ethernet Switch
KShs7,900,000.00

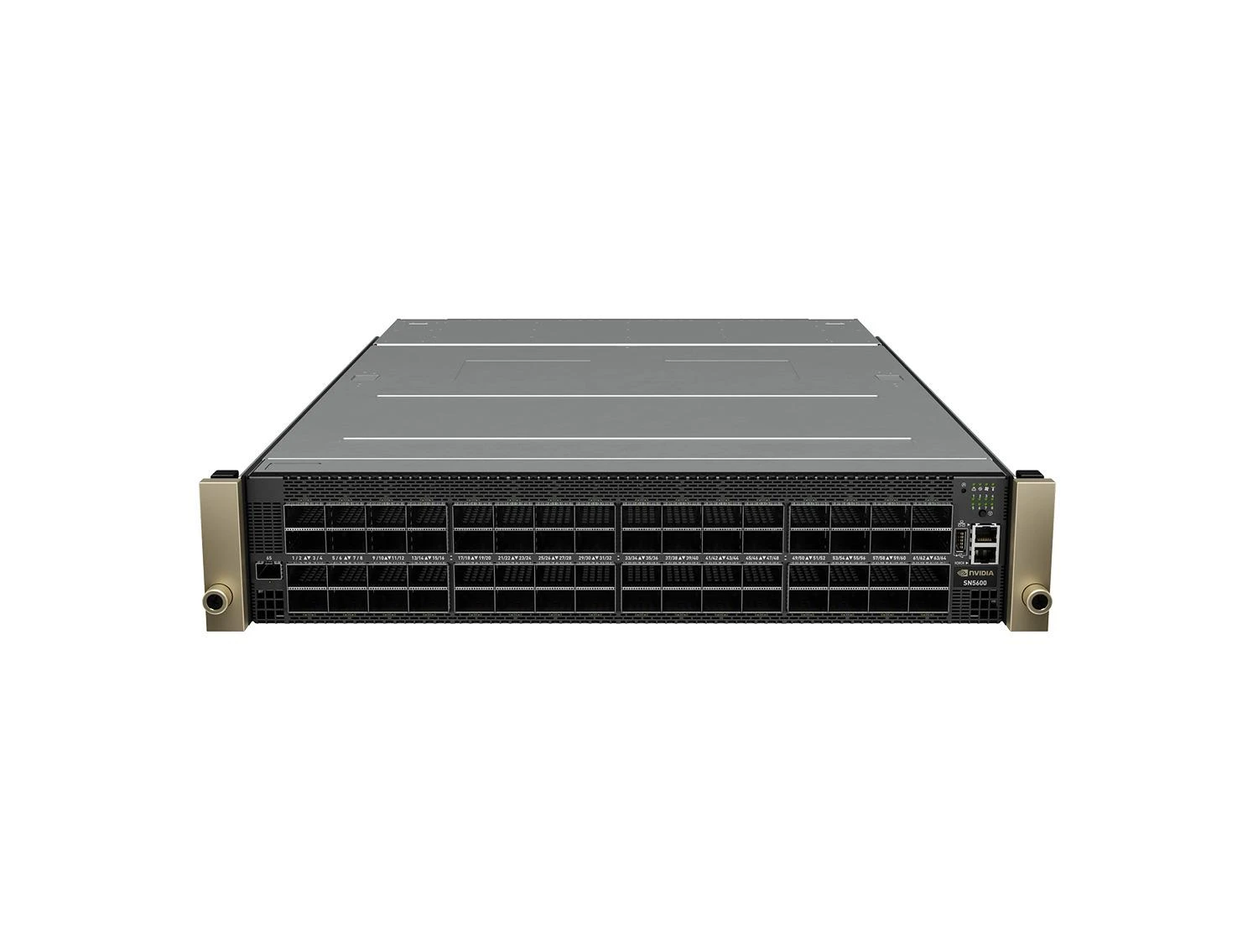

The NVIDIA SN5600D Spectrum-4 is a 2U data-centre Ethernet switch with 64 OSFP port cages, speeds up to 800GbE and 51.2 Tbps switching capacity. Designed for AI clusters, cloud infrastructure and high-performance computing, it uses a 48V DC busbar power connection for compatible rack installations. Contact Globikom for pricing and availability in Kenya.
- Description
- Reviews (0)
Description
NVIDIA SN5600D Spectrum-4 800GbE Data Centre Ethernet Switch
The NVIDIA SN5600D is a high-performance Spectrum-4 Ethernet switch designed for AI infrastructure, cloud-scale data centres and high-performance computing networks. Its high-density port architecture and 51.2 Tbps switching capacity support demanding data-centre fabrics and large-scale AI workloads.
The SN5600D provides 64 OSFP port cages supporting interface speeds of up to 800GbE. With compatible breakout cables and configurations, the system can support up to 128 × 400GbE connections or other supported lower-speed interfaces.
Unlike the AC-powered SN5600 configuration, the SN5600D uses a 48V DC busbar power connection and is designed for compatible MGX rack installations. Buyers should verify rack compatibility, power infrastructure, airflow direction and cabling before ordering.
Key Features
- NVIDIA Spectrum-4 Ethernet switching architecture
- 64 × OSFP port cages
- Supported interface speeds up to 800GbE per port
- Up to 128 × 400GbE connections with supported breakout configurations
- 51.2 Tbps switching capacity
- 1 × SFP28 port supporting up to 25GbE
- 48V DC busbar power connection
- 2U chassis designed for compatible MGX rack mounting
- Four fans in the documented hardware configuration
- Designed for AI clusters, cloud data centres and high-performance computing
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | NVIDIA |
| Model | SN5600D |
| Switching ASIC | NVIDIA Spectrum-4 |
| Main port cages | 64 × OSFP |
| Maximum interface speed | 800GbE per port |
| Supported 400GbE connections | Up to 128 with compatible breakout configurations |
| Switching capacity | 51.2 Tbps |
| Management/auxiliary data port | 1 × SFP28, up to 25GbE |
| Power input | 48V DC busbar |
| Rack configuration | 2U, compatible MGX rack mounting |
| Dimensions | Approximately 88 × 438 × 781 mm, excluding busbar plug |
| Weight | Approximately 18.5 kg |
| Typical power consumption | Approximately 940W under NVIDIA’s stated test conditions |
Applications
- AI and machine-learning clusters
- Cloud and hyperscale data centres
- High-performance computing
- High-bandwidth Ethernet spine and super-spine networks
- Large-scale data-centre infrastructure
Ordering and Compatibility
The SN5600D is intended for a compatible DC-powered rack environment. Confirm the exact NVIDIA part number, rack and busbar compatibility, airflow direction, operating system or software configuration, supported optics and breakout cables before ordering.
Contact Globikom for pricing, supplier availability and delivery options in Kenya and across Africa.
